Fluorescent Microscopes

Fluo RAL Revolutionary LED Fluorescent Module

Module Fluo-RAL is a powerful and economical upgrade to your traditional Mercury or Xenon lamps. Thanks to its high-performance LED, it improves contrast and reliability, and is ready to use straight away with no warm up time required.

Unlike a traditional mercury vapour or xenon lamp, an LED emits a quasi-monochromatic spectrum, of higher intensity at the reference wavelength.

The fluorescence intensity is therefore higher giving better contrast from the background of the preparation and easier and more reliable reading with less eye strain.

With adaptors to fit any existing fluorescent microscope, this module is an excellent upgrade for any laboratory involved in modern fluorescent work. For more information or to arrange a demonstration, please contact our sales team.

BS-7000B - Inverted Fluorescent Biological Microscope

This Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell cultures. The Infinite Optical System gives excellent optical performance. Excellent high resolution fluorescent objectives generate high quality fluorescent images.

Specifications

• Infinite Optical System
• Seidentopf Trinocular Head, Inclined at 30°
• High-point, Extra Wide Field Eyepiece EW10×/ 22
• Quintuple Nosepiece
• ELWD Condenser NA 0.3, LWD 72mm
• Coaxial Coarse & Fine Adjustment, Fine Division
• Plain stage 160×250 mm
• Photo Attachment for SLR Cameras
• Halogen Lamp 6V/ 30W & Range of reflected light sources
• 100W HBO Ultra Hi-voltage Spherical Mercury Lamp
• Optional Teresaki, Petri Dish or Slide Holders & other attachements

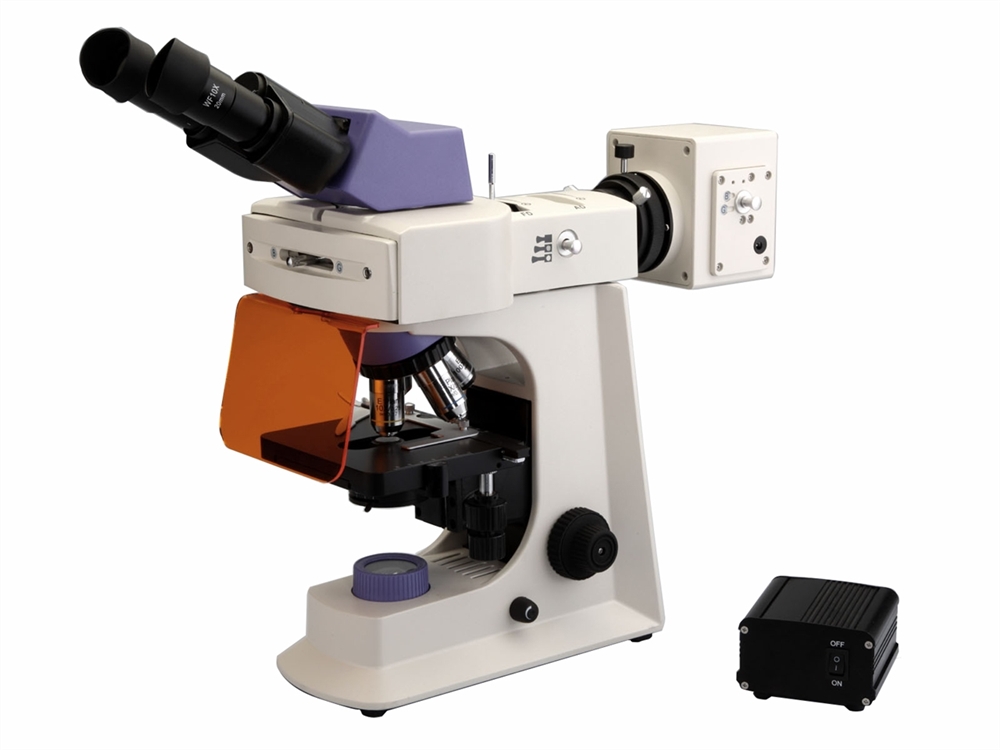

BS-2036F - LED Fluorescent Biological Microscope

These advanced LED fluorescence microscopes are newly developed using LED fluorescence technology. They use LEDs as the light source as the life span of the LED lamp is much longer than a mercury lamp with no warm up time or cooling needed. Safety design to eliminate catching and scratching.

Specifications

• Infinite Optical System
• Seidentopf Binocular Viewing Head, Inclined at 30°, 360°, Interpupillary 48-75mm
• Wide Field Eyepiece WF10×/20
• Backward Quadruple Nosepiece
• Infinite Plan Achromatic Objective 4×, 10×, 40×, 100×
• Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm
• Rectangular 216×150mm, Cross Travel 78×54mm, Using Low-positioned X/ Y Coaxial Control Knob, Two slides
• 6V/20W Halogen Lamp, Brightness Adjustable

BS-2040F - Fluorescent Biological Microscope

These advanced LED fluorescence microscopes are newly developed using LED fluorescence technology. They use LEDs as the light source as the life span of the LED lamp is much longer than a mercury lamp with no warm up time or cooling needed. Advanced modern design.

Specifications

• Infinite Optical System
• Seidentopf Binocular Viewing Head, Inclined at 30°, Interpupillary 48-75mm
• Wide Field Eyepiece WF10×/18
• Backward Quadruple Nosepiece
• Infinity Semi-Plan Objective 4×, 10×, 40×, 100×
• Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
• Double Layered Mechanical Stage 140×140/ 75×50 mm
• 6V/20W Halogen Lamp, Brightness Adjustable
• 3W LED Blue & Green excitation Light Source
• Advanced ergonomic design

BS-7000A - Upright Fluorescent Biological Microscope

This upright fluorescence microscope uses ultraviolet light as the light source, objects which are radiated then fluoresce, and then the shape of an object and its location can be observed under the microscope. High quality and robust construction.

Specifications

• Infinite Optical System
• Seidentopf Trinocular Head, Inclined at 30°
• Wide Field Eyepiece WF10×/22
• Backward Quintuple Nosepiece
• Infinite Plan Achromatic Objective 4×, 10×, 20x, 40×, 100×
• Swing Condenser NA 0.9/ 0.25
• Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm
• Double Layers Mechanical Stage 185×142/ 75×55 mm
• External Illumination, Aspherical Collector, Halogen Lamp6V/30W
• Range of reflected light sources
• 100W HBO Ultra Hi-voltage Spherical Mercury Lamp

BS-3060F - Fluorescent Zoom Stereo Microscope

This fluorescent stereo microscope allows viewing of samples with fluorescence at a range of magnifications, from 2.4x - 480x. With a range of sophisticated accessories this microscope allows you to view and photograph specimens from macro or micro views.

Specifications

• Infinite Parallel Zoom Optical System
• Binocular Head, 20° Inclination
• Eyepiece EW10×/Φ22 (more available)
• Working Distance 115mm
• Fluorescent attachment GFP-B(EX460-500,DM505,BA510-560) (more available)
• 0.8×-5×, 0.8x-6.4x or 0.8x-8x Zoom Objectives available
• Wide range of objectives available
• Transmission & Reflection LED Illumination, Brightness Adjustable & 100W Ultra hi-voltage spherical mercury lamp, power supplier with digital display
